3.3 User Interface Design

3.3.1 Screen Images

Here is the selection of the interfaces that the Player may encounter in the duration of the game of multi - choice.

Screen Image 1 Screen Image 2 Screen Image 3 Screen Image 4
Screen Image 5 Screen Image 6 Screen Image 7 Screen Image 8

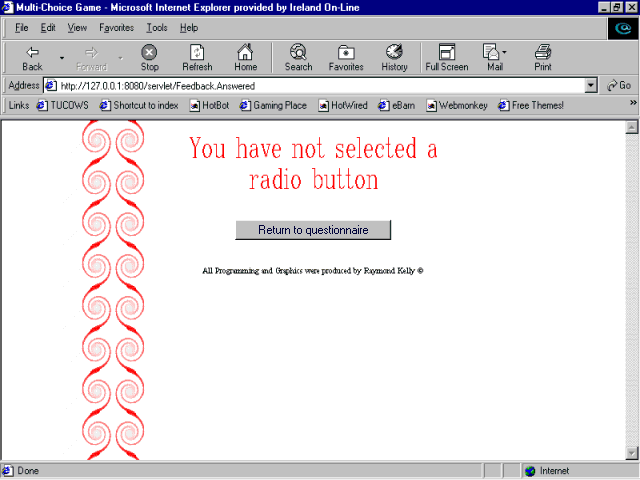

Screen Image 5


No radio button selected Interface
In the scenario where a Player has not selected a radio button from the multi-choice the Answered servlet then checks to see the value of the answer, if it finds it to be null it then issues this interface to the Player whereby the must press the "Return to questionnaire" button and then select the radio button followed by the "Answer" button.
